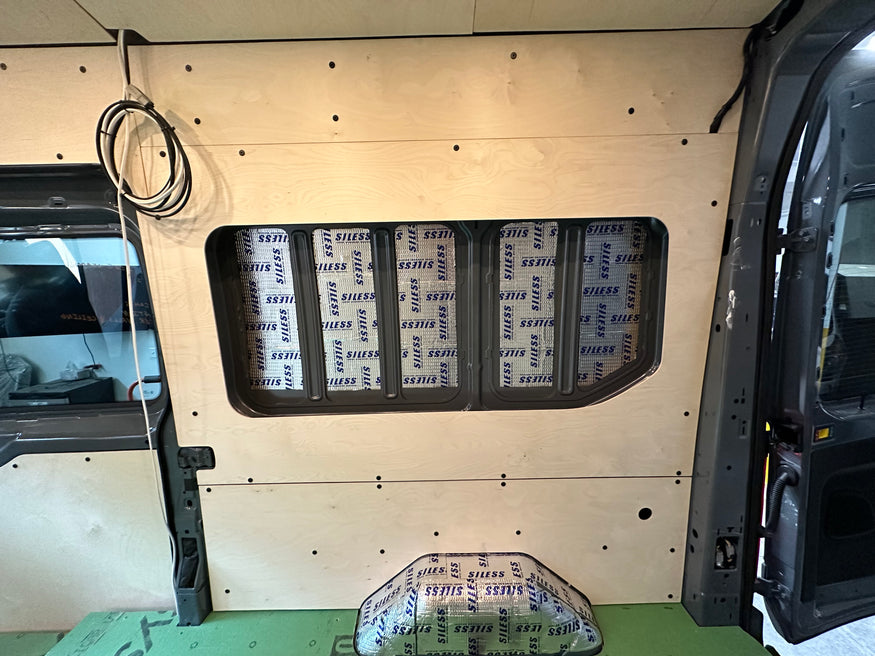

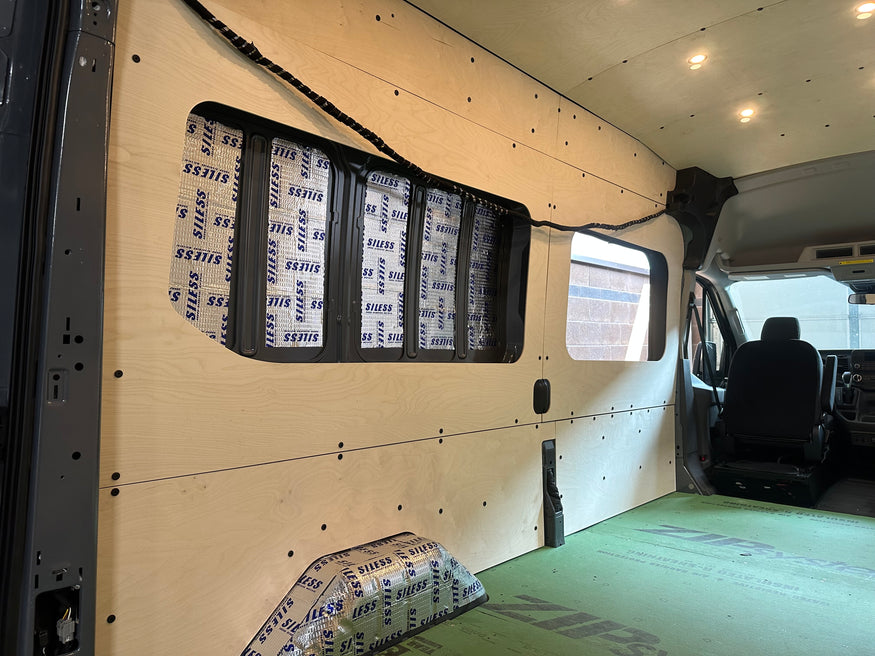

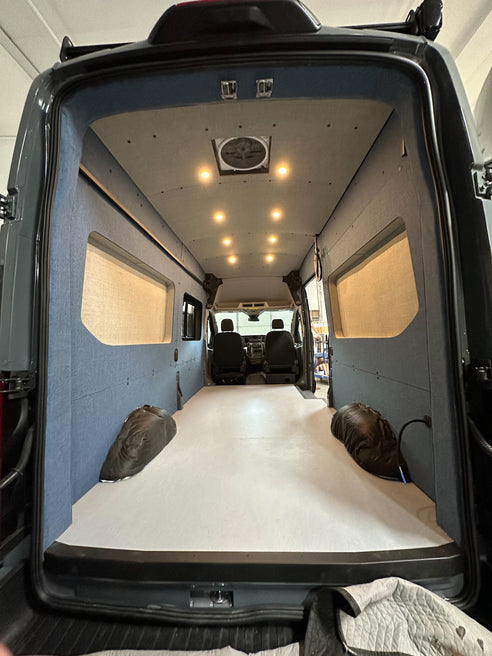

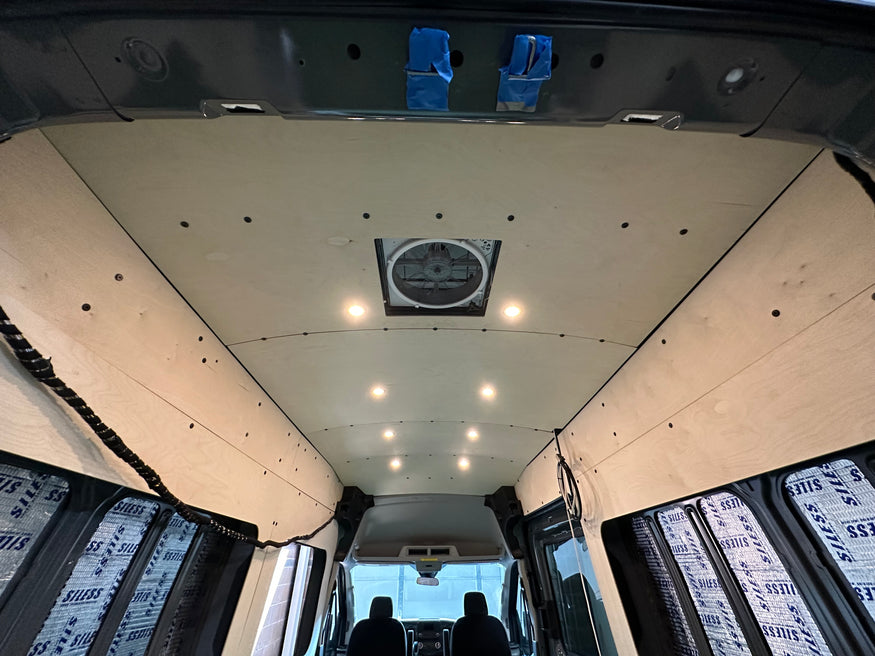

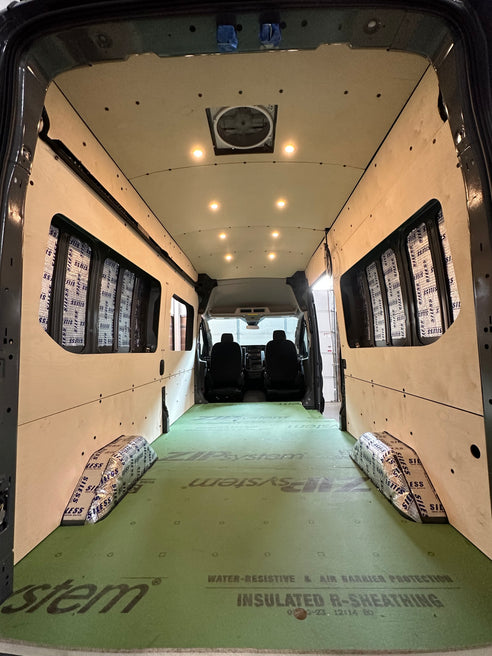

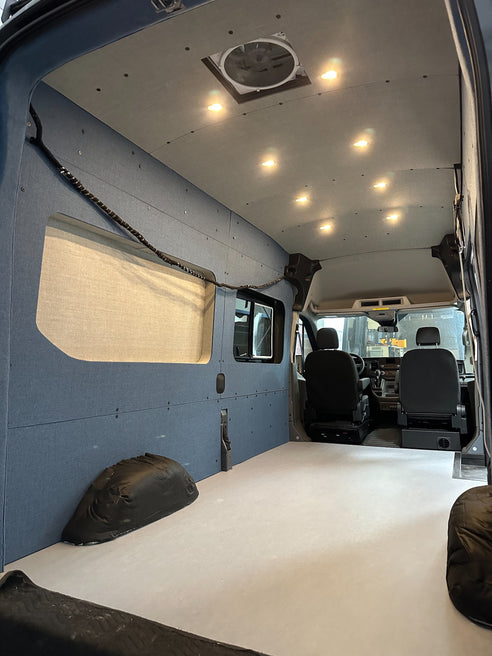

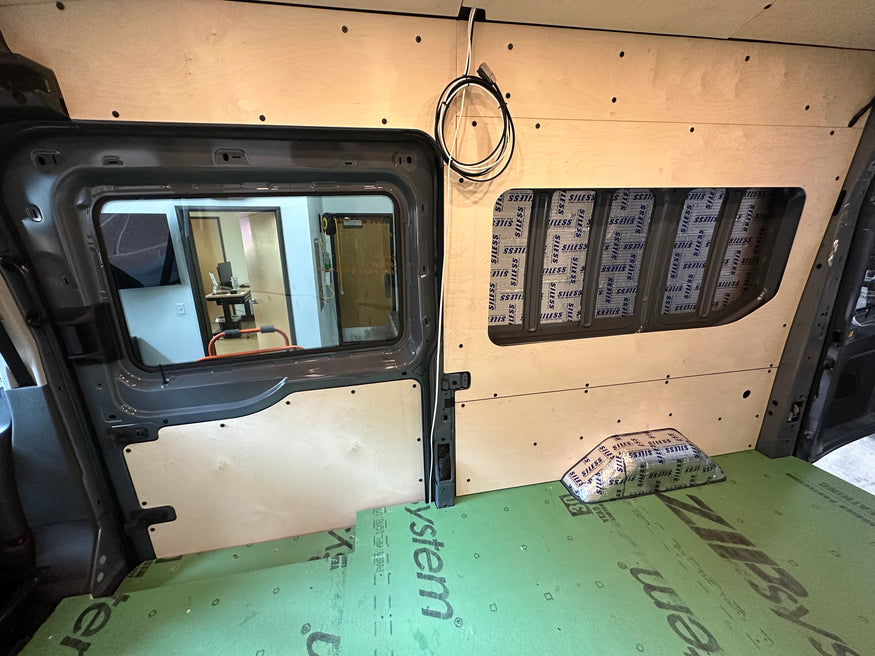

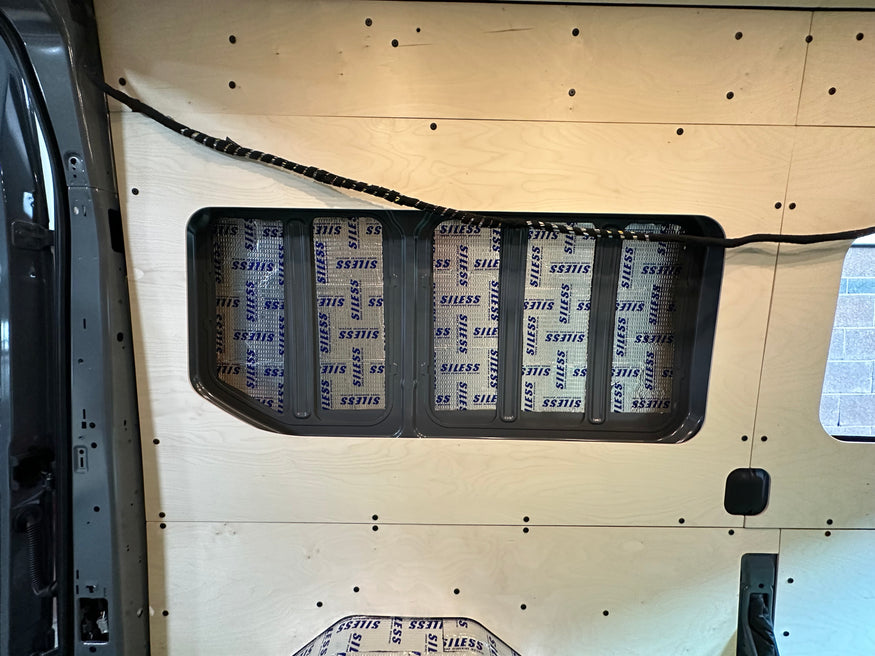

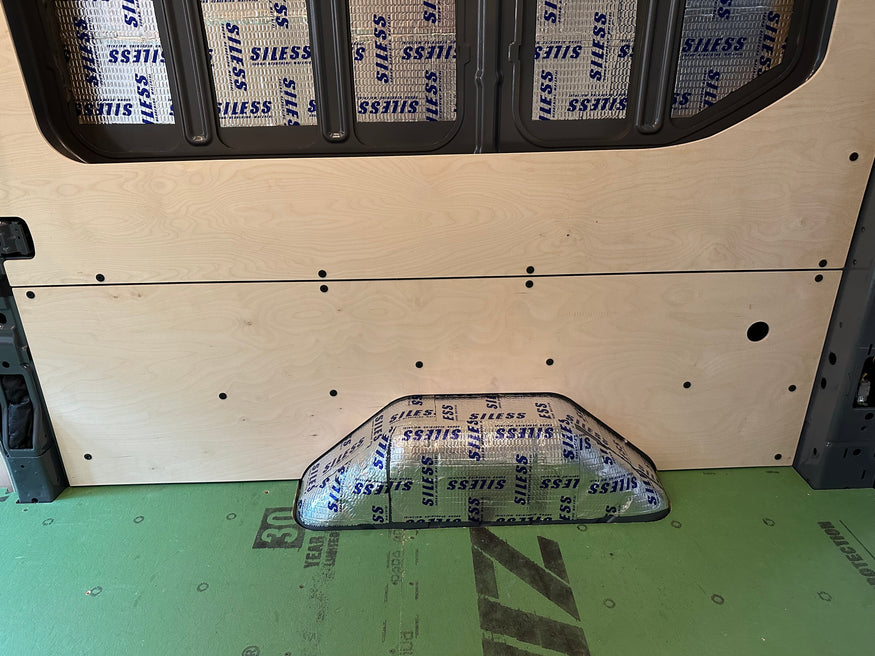

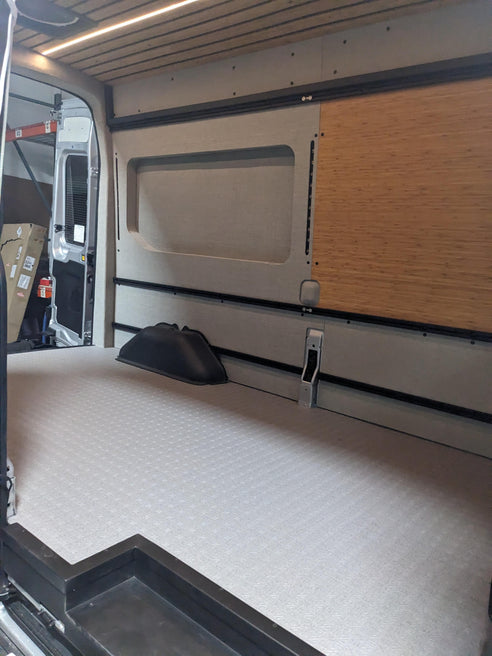

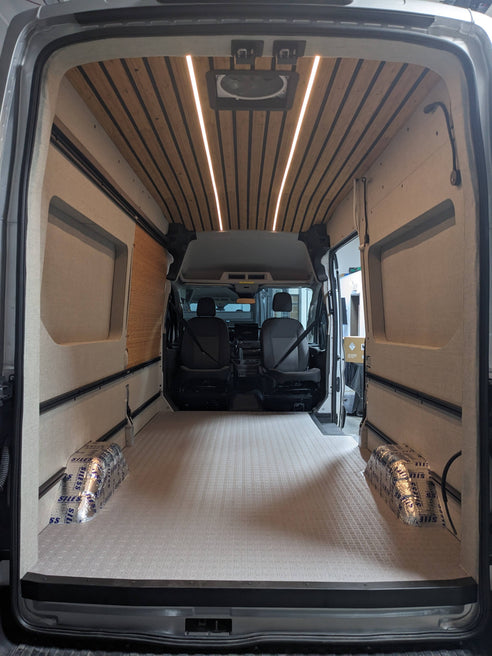

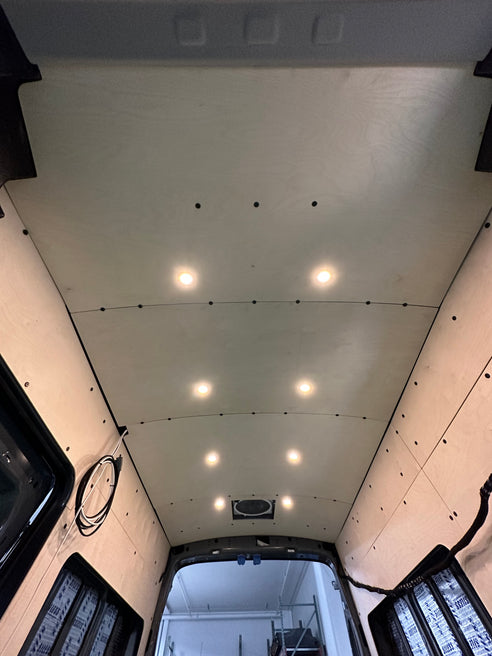

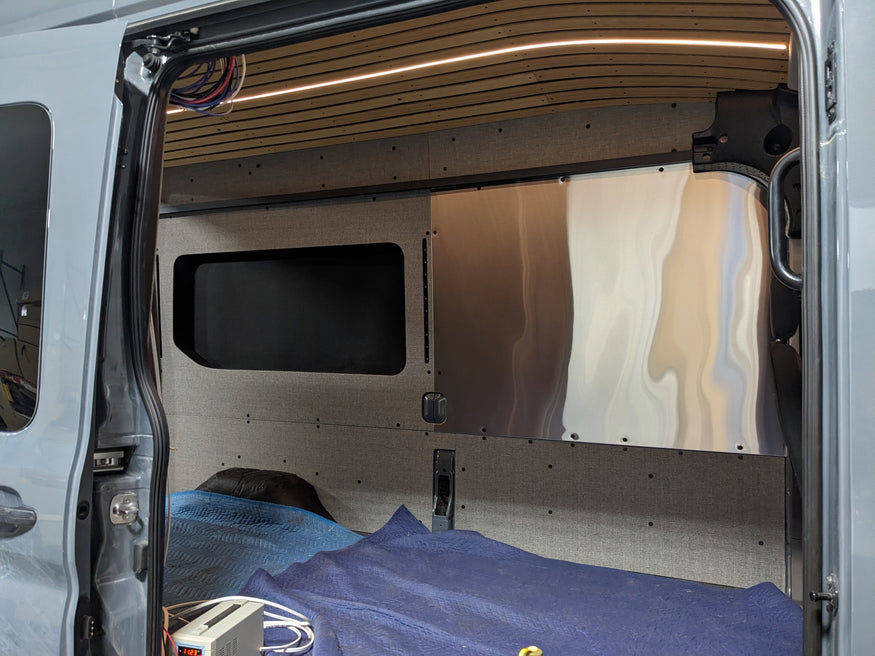

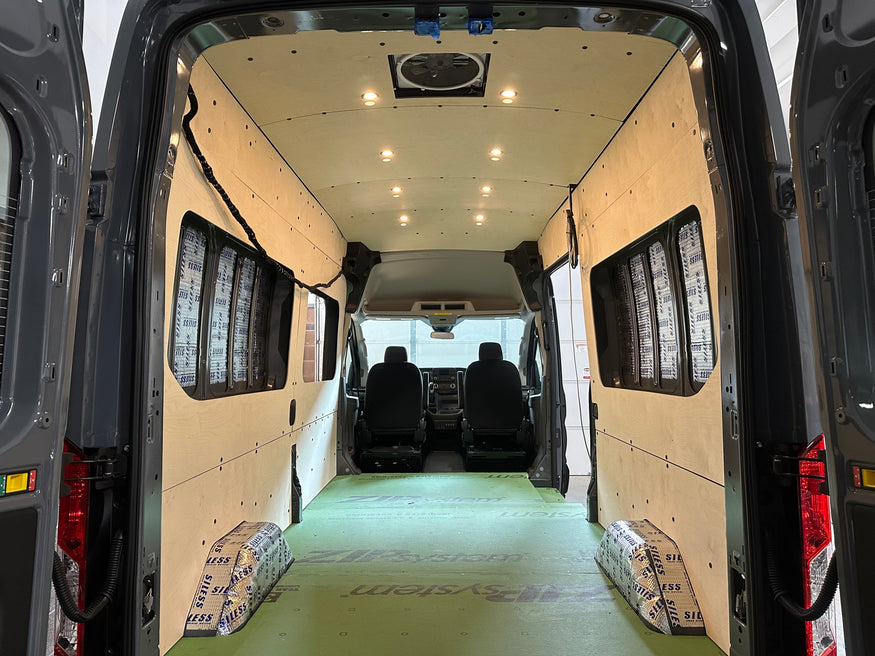

Complete set of wall paneling for the Transit 148" High Roof. Constructed of 6mm Baltic Birch plywood. Includes all hardware needed to install. Remote support for installation provided.

Please watch our YouTube video showing installation of this product for more information.

Details:

• Plywood is not finished but we can optionally finish the panels (see below).
• All plywood is the highest grade (BB/BB) possible but does have an allowable number of patches (usually between 0-6 per side). A higher grade is not commercially available. There is natural grain variation in all plywood products.

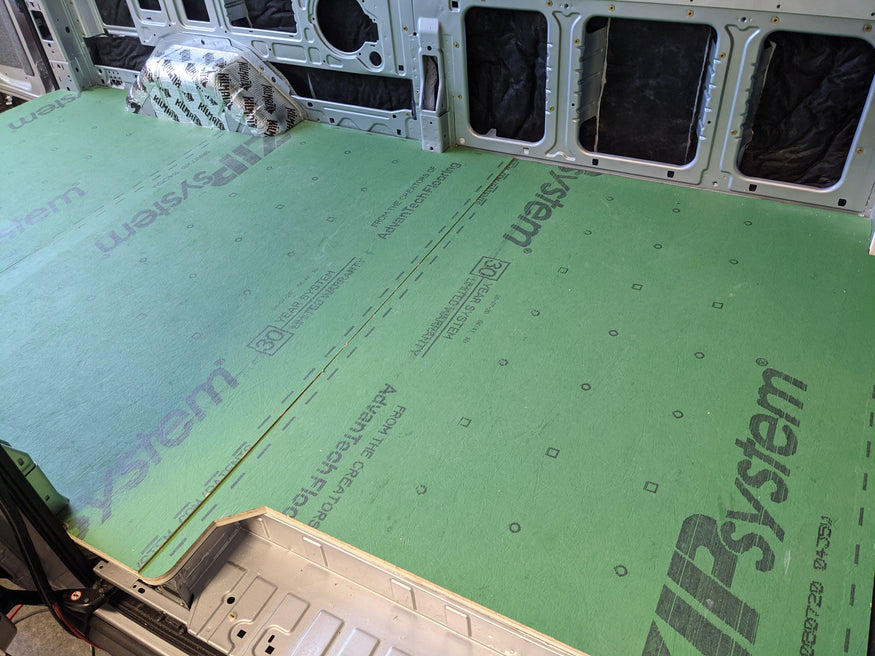

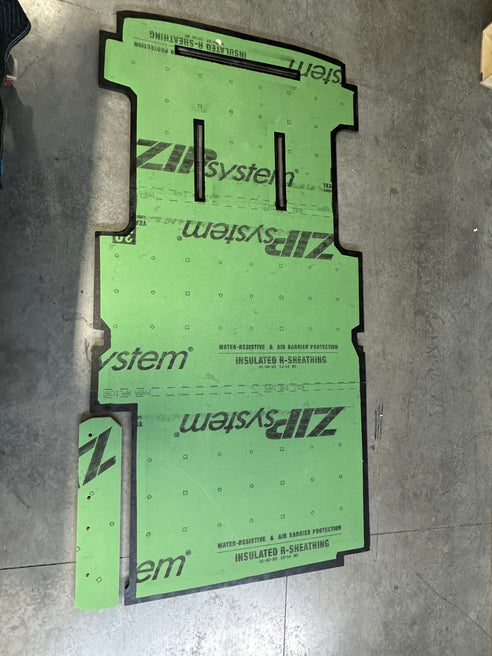

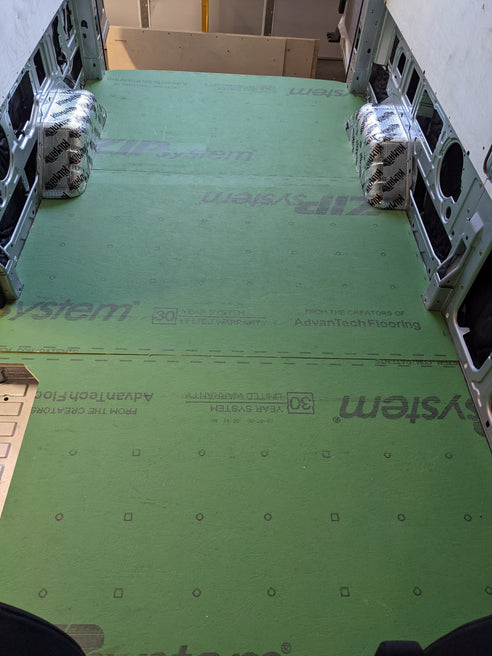

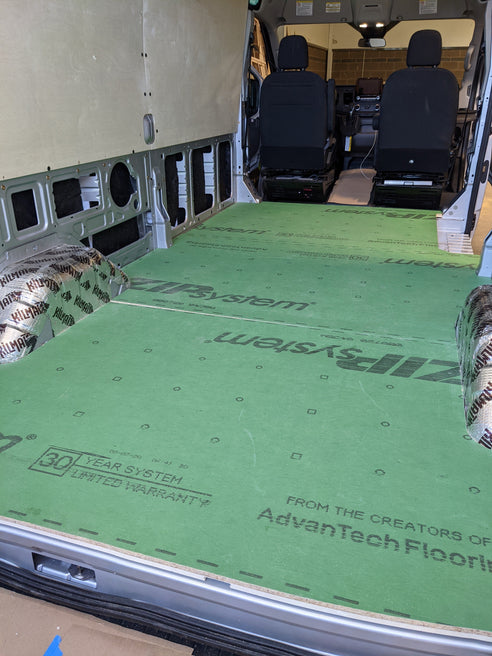

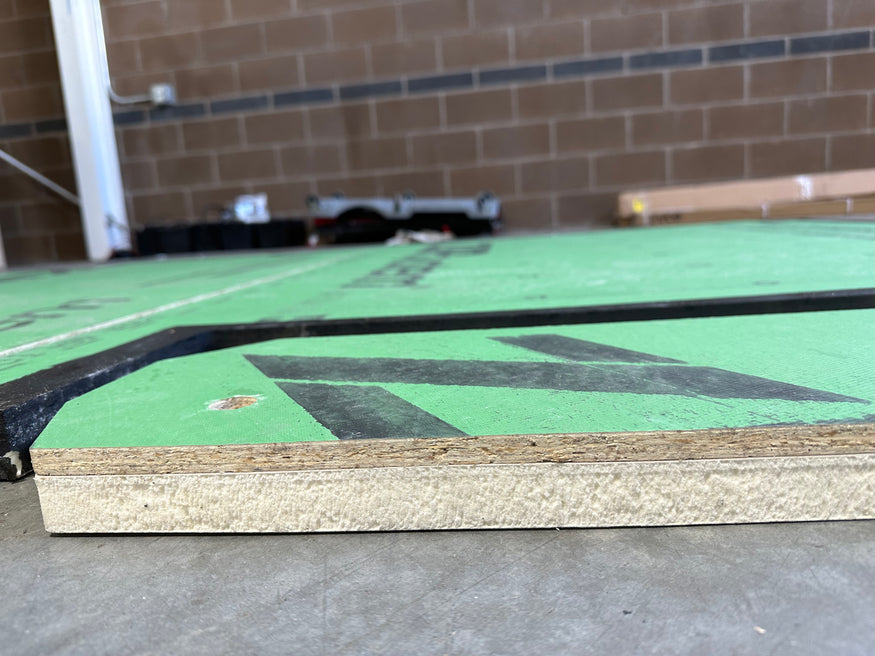

• Standard floor thickness is 1.5" (can accommodate different dimensions with a fee).
• Precise hole placements utilize stock van locations.
• Requires installation of approximately 75 Rivnuts/Plusnuts for mounting, 5 of which must be drilled into van wall.
• Must use supplied 1/4-20 bolts with 5/8" diameter thin head (black).
• Expect ~1/16" to 3/32" gaps at paneling edges, necessary for thermal expansion and ideal for upholstering.
• Does not require modification to the foam blobs at the front of the vehicle.
• The factory Ford wiring harness plastic covers must be removed for installation of the paneling. We sell a low profile black wire chase to cover this wiring harness again after installing the paneling.
• Some small areas of internal wall not covered (will provide info by request).

What's Included:

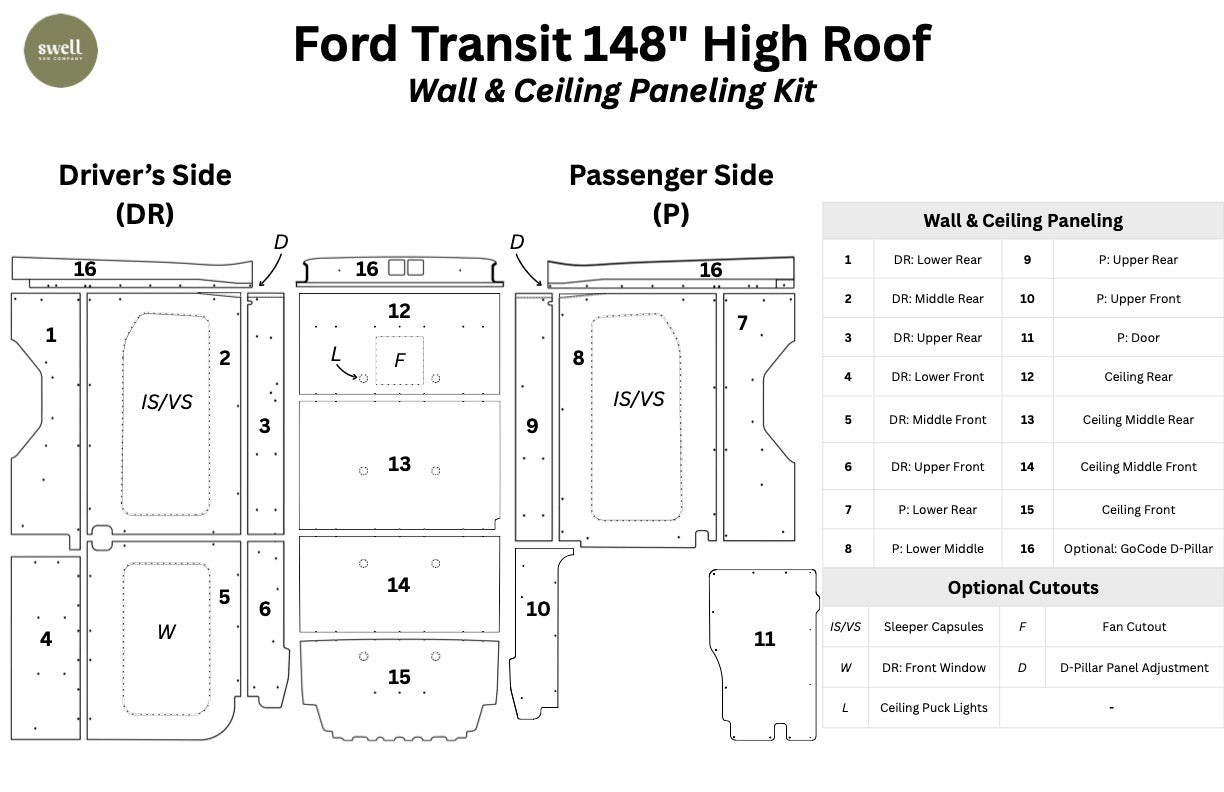

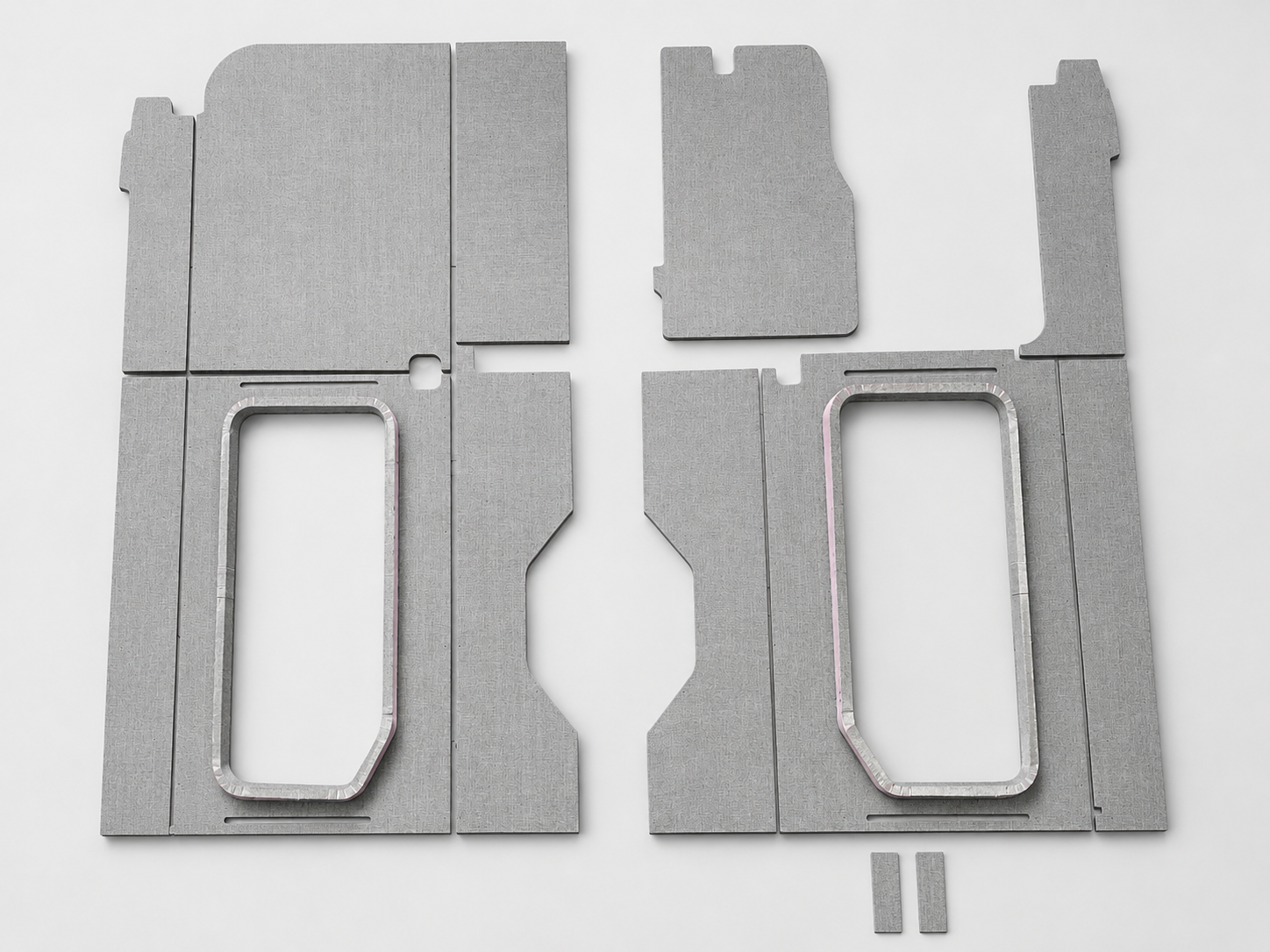

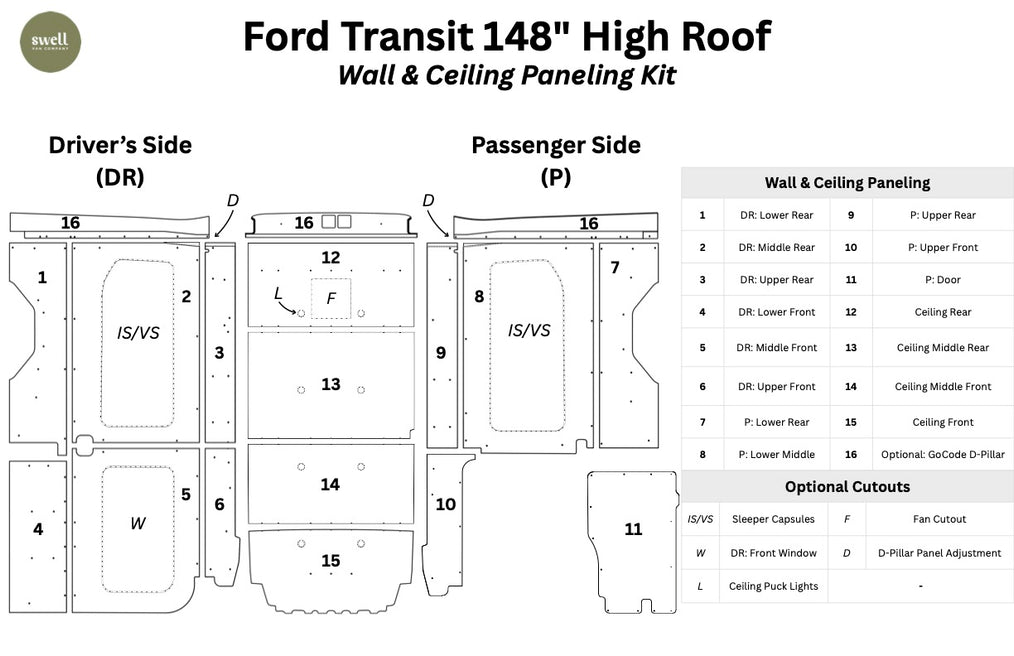

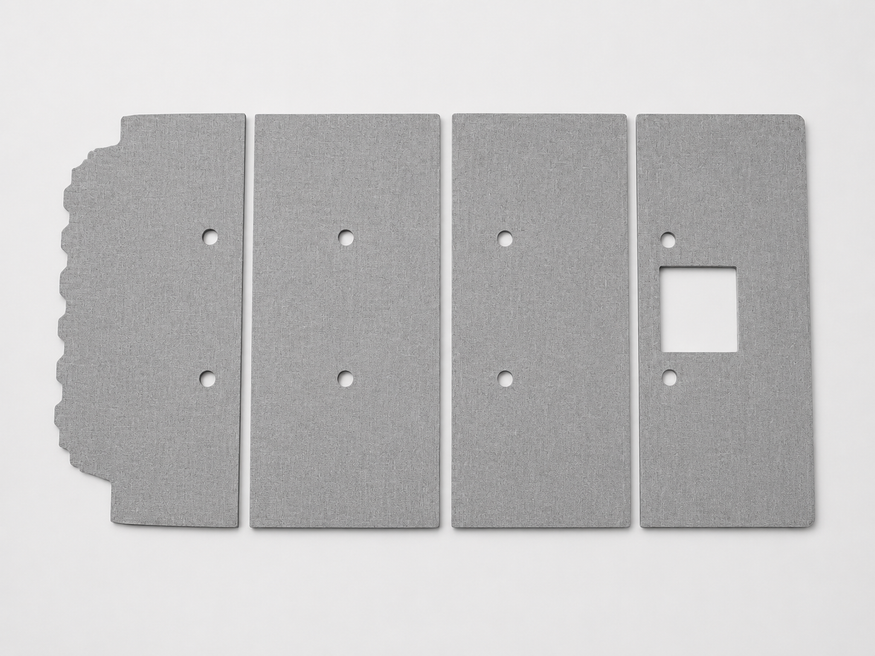

• Set of 11 Wall Panels (with optional cut-outs)
• Set of 4 metal Vertical Supports for making the walls a better angle and trimming out sliding door area.
• Rivnuts and Plusnuts used to mount panels with Map for installation
• Wide head bolts and screws

What's Not Included:

• Wire Chase for covering factory Ford wiring harness (sold separately)
• Rear column coverings (Go Code Overland D-Pillar Trim is recommended)
• Any optional trim products, such as the GCO Window Trim Ring or Sleeping Bump-Outs for sleeping east-to-west.
